• 735 PGTS Series

    735 PGTS Series

    • TERMINAL MATERIAL : BRASS
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • PC : PGTS
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select

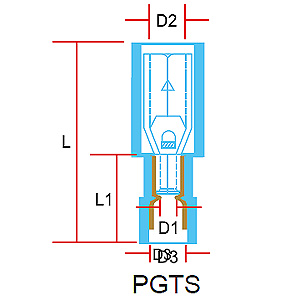

D1 D3 H L L1 L2 AWG(#) D2(mm)

735004 PGTS

Blue AWG 16~14
1.5~2.5mm² 		2.3 4.3 5.5 23.6 11.5 7.3 0.157 4.0 100/500/1000

735005 PGTS

Blue AWG 16~14
1.5~2.5mm² 		2.3 4.8 5.5 23.6 11.5 7.0 0.196 5.0 100/500/1000
