• 1.Maximum Electic Rating: 75℃ 600V
    最高溫度: 75℃ 耐壓600V
    2.Maximum Electric Current: (最大電流)
       22-16AWG / 0.5-1.5mm²: 19A
       16-14AWG / 1.5-2.5mm²: 27A
       12-10AWG / 4-6mm²: 48A
    3.Terminal Body: Copper (端子材質: 紅銅)
    4.Insulation: Vinyl (護套材質: PVC)
    5.Plating: Tin(表面處理: 鍍錫)

    VM---Flared Vinyl without copper sleeve

    PIPG---Pre-insulated funnel Vinyl insulator with easy entry copper sleeve

Please Click products below, and click Add to Inquiry List for inquiry.

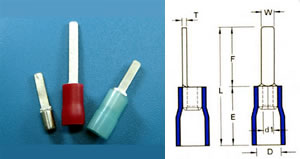

Photo Series Product Name Download Insulation Color Wire Range mm2/Awg 适用 Dimension(mm/inch)主要尺寸 Packing 包 Select

331210

Red
0.5-1.5mm2 22-16AWG
2.3(.091)/10.0(.394)/20.0(.787)/10.0(.393)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

331218

Red
0.5-1.5mm2 22-16AWG
2.5(.098)/18.0(.709)/28.0(1.102)/10.0(.393)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

335310

Blue
1.5-2.5mm2 16-14AWG
2.5(.098)/10.0(.394)/20.0(.787)/10.0(.393)/4.5(.177)/2.3(.091)/0.8(.031)
1000/500

335318

Blue
1.5-2.5mm2 16-14AWG
2.5(.098)/18.0(.709)/28.0(1.102)/10.0(.393)/4.5(.177)/2.3(.091)/0.8(.031)
1000/500

333410

Yellow
4-6mm2 12-10AWG
3.0(.118)/10.0(.394)/23.5(.925)/13.5(.531)/6.3(.248)/3.4(.134)/1.0(.039)
1000/500

333416

Yellow
4-6mm2 12-10AWG
4.8(.188)/14.0(.551)/29.5(1.161)/13.5(.531)/6.3(.248)/3.4(.134)/1.0(.039)
1000/500

333218

Yellow
4-6mm2 12-10AWG
2.1(.082)/18.0(.709)/31.5(1.240)/13.5(.531)/6.3(.248)/3.4(.134)/1.0(.039)
1000/500
