• Tubular Lugs Terminals TL Type

    Tubular Lugs Terminals TL Type

    • Terminal Body: Copper (端子材質: 紫銅)
    • Plating: Tin(表面處理: 鍍錫)
Please Click products below, and click Add to Inquiry List for inquiry.

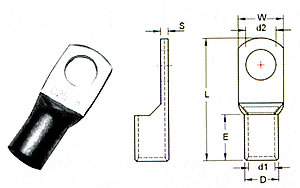

Photo Series Product Name Download Q’TY BOX 包裝量 螺栓規格 Dimension(mm/inch)主要尺寸 Select
Stud Size d2 W d1 D L E S

CN300-14

5
 9|16" 15.0 44.0 24.5 31.0 103.2 42.0 6.5

CN300-16

5
 5|8" 17.0 44.0 24.5 31.0 103.2 42.0 6.5

CN300-18

5
 11|16" 19.0 44.0 24.5 31.0 103.2 42.0 6.5

CN300-20

5
 3|4" 21.0 44.0 24.5 31.0 103.2 42.0 6.5

CN300-22

5
 7|8" 23.0 44.0 24.5 31.0 103.2 42.0 6.5

CN300-24

5
 15|16" 25.0 44.0 24.5 31.0 103.2 42.0 6.5

CN400-14

5
 9|16" 15.0 51.0 27.5 35.5 120.2 47.0 8.0

CN400-16

5
 5|8" 17.0 51.0 27.5 35.5 120.2 47.0 8.0

CN400-18

5
 11|16" 19.0 51.0 27.5 35.5 120.2 47.0 8.0

CN400-20

5
 3|4" 21.0 51.0 27.5 35.5 120.2 47.0 8.0

CN400-22

5
 7|8" 23.0 51.0 27.5 35.5 120.2 47.0 8.0

CN400-24

5
 15|16" 25.0 51.0 27.5 35.5 120.2 47.0 8.0

CN500-14

5
 9|16" 15.0 56.0 31.0 40.0 127.0 47.5 9.0

CN500-16

5
 5|8" 17.0 56.0 31.0 40.0 127.0 47.5 9.0

CN500-18

5
 11|16" 19.0 56.0 31.0 40.0 127.0 47.5 9.0

CN500-20

5
 3|4" 21.0 56.0 31.0 40.0 127.0 47.5 9.0

CN500-22

5
 7|8" 23.0 56.0 31.0 40.0 127.0 47.5 9.0

CN500-24

5
 15|16" 25.0 56.0 31.0 40.0 127.0 47.5 9.0

CN630-14

5
 9|16" 15.0 63.0 34.5 44.5 140.0 56.0 10.0

CN630-16

5
 5|8" 17.0 63.0 34.5 44.5 140.0 56.0 10.0

CN630-18

5
 11|16" 19.0 63.0 34.5 44.5 140.0 56.0 10.0

CN630-20

5
 3|4" 21.0 63.0 34.5 44.5 140.0 56.0 10.0

CN630-22

5
 7|8" 23.0 63.0 34.5 44.5 140.0 56.0 10.0

CN630-24

5
 15|16" 25.0 63.0 34.5 44.5 140.0 56.0 10.0
