• Maximum Electic Rating: 75℃ 300V
      最高溫度: 75℃ 耐壓300V
    • Maximum Electric Current: (最大電流)
      22-16AWG / 0.5-1.5mm²: 10A
      16-14AWG / 1.5-2.5mm²: 15A
      12-10AWG / 4-6mm²: 24A
    • Terminal Body: Brass (端子材質: 黃銅)
    • Insulation: Vinyl (護套材質: PVC)
    • Plating: Tin(表面處理: 鍍錫)

Please Click products below, and click Add to Inquiry List for inquiry.

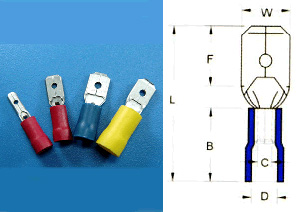

Photo Series Product Name Download Insulation Color Wire Range mm2/Awg 适用 Tab Size 插片 Dimension(mm/inch)主要尺寸 Packing 包 Select

631285

Red
0.5-1.5mm2 22-16AWG
.020*.110(0.5*2.8)
2.8(.110)/6.5(.256)/19.5(.756)/10.0(.394)/3.6(.141)/1.7(.066)/0.5(.020)
1000/500

631288

Red
0.5-1.5mm2 22-16AWG
.032*.110(0.8*2.8)
2.8(.110)/6.5(.256)/20.5(.807)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016)
1000/500

631485

Red
0.5-1.5mm2 22-16AWG
.020*.187(0.5*4.75)
4.75(.187)/6.5(.256)/19.5(.756)/10.0(.394)/3.6(.141)/1.7(.066)/0.5(.020)
1000/500

631488

Red
0.5-1.5mm2 22-16AWG
.032*.187(0.8*4.75)
4.75(.187)/6.5(.256)/20.5(.807)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016)
1000/500

631638

Red
0.5-1.5mm2 22-16AWG
.032*.250(0.8*6.35)
6.35(.250)/7.7(.303)/21.0(.826)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016)
1000/500

635485

Blue
1.5-2.5mm2 16-14AWG
.020*.187(0.5*4.75)
4.75(.187)/6.5(.256)/19.0(.748)/10.0(.394)/4.0(.157)/2.3(.091)/0.5(.020)
1000/500

635488

Blue
1.5-2.5mm2 16-14AWG
.032*.187(0.8*4.75)
4.75(.187)/6.7(.267)/21.0(.826)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016)
1000/500

635638

Blue
1.5-2.5mm2 16-14AWG
.032*.250(0.8*6.35)
6.35(.250)/7.7(.303)/21.0(.826)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016)
1000/500

633485

Yellow
4-6mm2 12-10AWG
.020*.187(0.5*4.75)
4.75(.187)/7.7(.303)/25.0(.984)/13.0(.511)/6.0(.236)/3.5(.137)/0.5(.020)
1000/500

633488

Yellow
4-6mm2 12-10AWG
.032*.187(0.8*4.75)
4.75(.187)/7.7(.303)/25.0(.984)/13.0(.511)/6.0(.236)/3.5(.137)/0.4(.016)
1000/500

633638

Yellow
4-6mm2 12-10AWG
.032*.250(0.8*6.35)
6.35(.250)/7.7(.303)/25.0(.984)/13.0(.511)/6.0(.236)/3.5(.137)/0.4(.016)
1000/500
