• Maximum Electic Rating: 150℃ 600V
      最高溫度: 150℃ 耐壓600V
    • Maximum Electric Current: (最大電流)
      22-16AWG / 0.5-1.5mm²: 19A
      16-14AWG / 1.5-2.5mm²: 27A
      12-10AWG / 4-6mm²: 48A
    • Terminal Body: Copper (端子材質: 紅銅)
    • Insulation: Heat Shrink Tube (護套材質: 耐高溫熱縮管)
    • Plating: Tin(表面處理: 鍍錫)

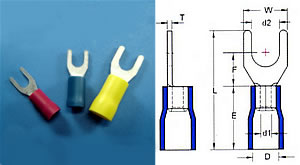

      SEL---Heat shrinkable Insulation

Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation Color Wire Range mm2/Awg 适用 螺栓 Dimension(mm/inch)主要尺寸 Packing 包 Select

321032/DS3-1

Red
0.5-1.5mm2 22-16AWG
#4/3.2(.126)
5.7(.224)/6.5(.256)/19.35(.762)/10.0(.394)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

321037/DS3.5-1

Red
0.5-1.5mm2 22-16AWG
#6/3.7(.146)
6.4(.252)/6.5(.256)/19.7(.776)/10.0(.394)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

321043-6.8/DS4-1-6.8

Red
0.5-1.5mm2 22-16AWG
#8/4.3(.169)
6.8(.267)/6.5(.256)/19.7(.776)/10.0(.394)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

321043-7.2

Red
0.5-1.5mm2 22-16AWG
#8/4.3(.169)
7.2(.283)/6.5(.256)/20.1(.791)/10.0(.394)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

321043-8.0/DS4-1-8.0

Red
0.5-1.5mm2 22-16AWG
#8/4.3(.169)
8.0(.314)/6.5(.256)/20.1(.791)/10.0(.394)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

321053/DS5-1

Red
0.5-1.5mm2 22-16AWG
#10/5.3(.209)
9.5(.374)/6.5(.256)/17.25(.679)/10.0(.394)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

321064/DS6-1

Red
0.5-1.5mm2 22-16AWG
14/6.4(.252)
11.0(.433)/11.0(.433)/26.5(1.043)/10.0(.394)/4.0(.157)/1.7(.067)/0.8(.031)
1000/500

325032/DS3-2.5

Blue
1.5-2.5mm2 16-14AWG
#4/3.2(.126)
6.0(.236)/6.5(.256)/19.5(.768)/10.0(.394)/4.5(.177)/2.3(.091)/0.8(.032)
1000/500

325037/DS3.5-2.5

Blue
1.5-2.5mm2 16-14AWG
#6/3.7(.146)
6.4(.252)/6.5(.256)/19.7(.776)/10.0(.394)/4.5(.177)/2.3(.091)/0.8(.032)
1000/500

325043-6.8/DS4-2.5-6.8

Blue
1.5-2.5mm2 16-14AWG
#8/4.3(.169)
6.8(.267)/6.5(.256)/19.7(.776)/10.0(.394)/4.5(.177)/2.3(.091)/0.8(.032)
1000/500

325043-7.2/DS4-2.5-7.2

Blue
1.5-2.5mm2 16-14AWG
#8/4.3(.169)
7.2(.283)/6.5(.256)/20.1(.791)/10.0(.394)/4.5(.177)/2.3(.091)/0.8(.032)
1000/500

325043-8.0/DS4-2.5-8.0

Blue
1.5-2.5mm2 16-14AWG
#8/4.3(.169)
8.0(.314)/6.5(.256)/20.5(.807)/10.0(.394)/4.5(.177)/2.3(.091)/0.8(.032)
1000/500

325053/DS5-2.5

Blue
1.5-2.5mm2 16-14AWG
#10/5.3(.209)
9.5(.366)/6.5(.256)/21.25(837)/10.0(.394)/4.5(.177)/2.3(.091)/0.8(.032)
1000/500

325064/DS6-2.5

Blue
1.5-2.5mm2 16-14AWG
1/4/6.4(.252)
11.0(.433)/11.0(.433)/26.5(1.043)/10.0(.394)/4.5(.177)/2.3(.091)/0.8(.032)
1000/500

323032

Yellow
4-6mm2 12-10AWG
#4/3.2(.126)
5.8(.228)/7.0(.276)/23.4(.921)/13.5(.531)/6.5(.225)/3.5(.137)/1.0(.039)
1000/500

323037

Yellow
4-6mm2 12-10AWG
#6/3.7(.146)
6.4(.252)/7.5(.295)/24.2(.953)/13.5(.531)/6.5(.225)/3.5(.137)/1.0(.039)
1000/500

323043/DS4-6

Yellow
4-6mm2 12-10AWG
#8/4.3(.169)
7.2(.283)/7.5(.295)/24.2(.953)/13.5(.531)/6.5(.225)/3.5(.137)/1.0(.039)
1000/500

323053/DS5-6

Yellow
4-6mm2 12-10AWG
#10/5.3(.209)
9.5(.374)/8.0(.314)/26.3(1.034)/13.5(.531)/6.5(.225)/3.5(.137)/1.0(.039)
1000/500

323064/DS6-6

Yellow
4-6mm2 12-10AWG
1/4/6.4(.252)
12.0(.472)/12.0(.472)/31.5(1.24)/13.5(.531)/6.5(.225)/3.5(.137)/1.0(.039)
1000/500

323084/DS8-6

Yellow
4-6mm2 12-10AWG
5/16/8.4(.332)
14.0(.551)/14.5(.570)/34.5(1.36)/13.5(.531)/6.5(.225)/3.5(.137)/1.0(.039)
1000/500

323010/DS10-6

Yellow
4-6mm2 12-10AWG
3/8/10.0(.393)
18.0(.708)/14.5(.570)/37.0(1.457)/13.5(.531)/6.5(.225)/3.5(.137)/1.0(.039)
1000/500
