• 381 VM/PIPG Series

    381 VM/PIPG Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • VINYL : VM, PIPG
Please Click products below, and click Add to Inquiry List for inquiry.

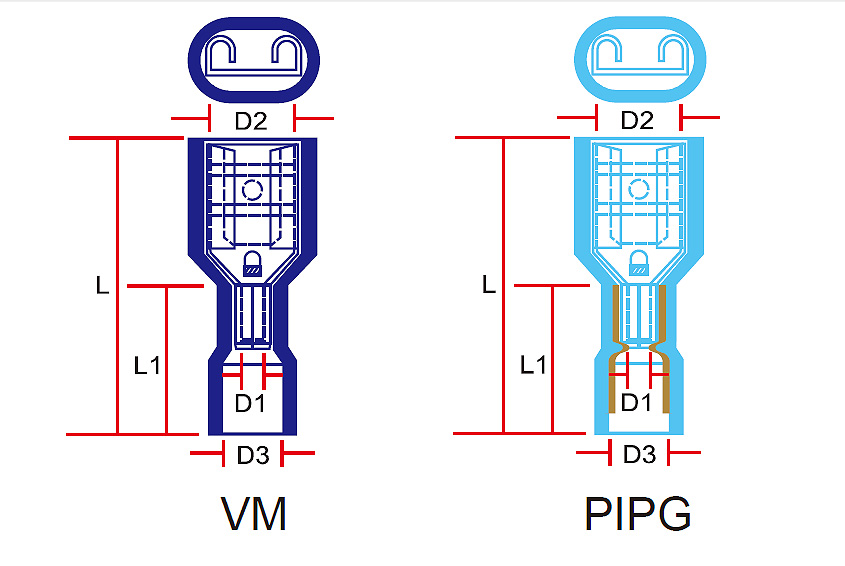

Photo Series Product Name Download Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select
D1 D2 D3 H L L1 AWG(#) D2(mm)

381285 VM/PIPG

AWG 22~16
0.5~1.5mm² 		1.8 3.2 4.3 5.5 20.0 10.0 .110x.020 2.8x0.5 100/500/1000

381288 VM/PIPG

AWG 22~16
0.5~1.5mm² 		1.8 3.2 4.3 5.5 20.0 10.0 .110x.032 2.8x0.8 100/500/1000

381485 VM/PIPG

AWG 22~16
0.5~1.5mm² 		1.8 5.0 4.3 5.5 20.0 10.0 .187x.020 4.8x0.5 100/500/1000

381488 VM/PIPG

AWG 22~16
0.5~1.5mm² 		1.8 5.0 4.3 5.5 20.0 10.0 .187x.032 4.8x0.8 100/500/1000

381638 VM/PIPG

AWG 22~16
0.5~1.5mm² 		1.8 6.6 4.3 5.5 21.5 10.5 .250x.032 6.3x0.8 100/500/1000
