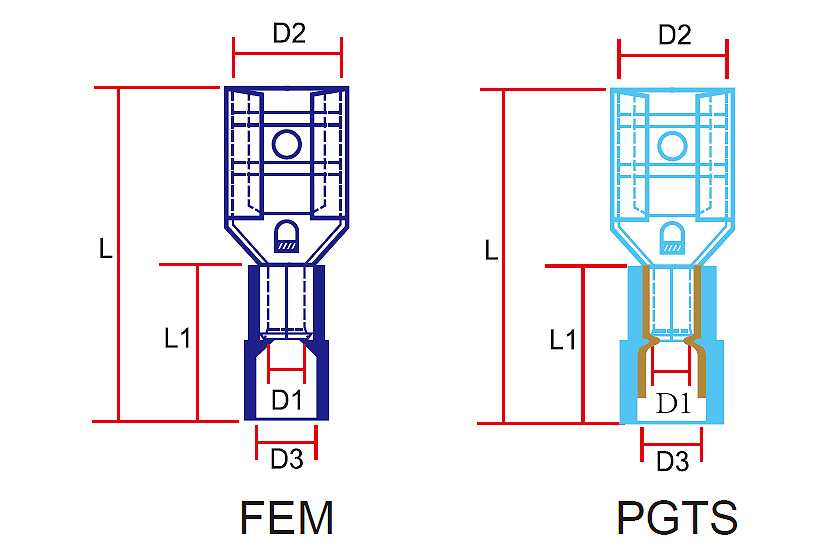

Products Female Disconnectors(NEW) Female Disconnectors-Polycarbonated Insulated(PC) 361 FEM/PGTS Series 361 FEM/PGTS Series TERMINAL MATERIAL : COPPER RATE ALTERNATIVE INSULATOR: FUNNEL BARREL EASY ENTRY POLYCARBONATE INSULATOR PC : FEM, PGTS Please Click products below, and click Add to Inquiry List for inquiry. Photo Series Product Name Download Insulation Color Wire Range Dimension(mm) TAB SIZE PACKINGPOLYBAG Select D1 D2 D3 H L L1 AWG(#) D2(mm) 361285 FEM/PGTS Red AWG 12~100.5~1.5mm² 1.8 3.2 4.3 5.5 19.0 10.0 .110x.020 2.8x0.5 100/500/1000 361288 FEM/PGTS Red AWG 12~100.5~1.5mm² 1.8 3.2 4.3 5.5 19.0 10.0 .110x.032 2.8x0.8 100/500/1000 361485 FEM/PGTS Red AWG 12~100.5~1.5mm² 1.8 5.0 4.3 5.5 19.0 10.0 .187x.020 4.8x0.5 100/500/1000 361488 FEM/PGTS Red AWG 12~100.5~1.5mm² 1.8 5.0 4.3 5.5 19.0 10.0 .187x.032 4.8x0.8 100/500/1000 361638 FEM/PGTS Red AWG 12~100.5~1.5mm² 1.8 6.6 4.3 5.5 20.5 10.0 .250x.032 6.3x0.8 100/500/1000 Add to Inquiry List Review Inquiry List Back
