• 361 VM/PIPG Series

    361 VM/PIPG Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • VINYL : VM, PIPG
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select

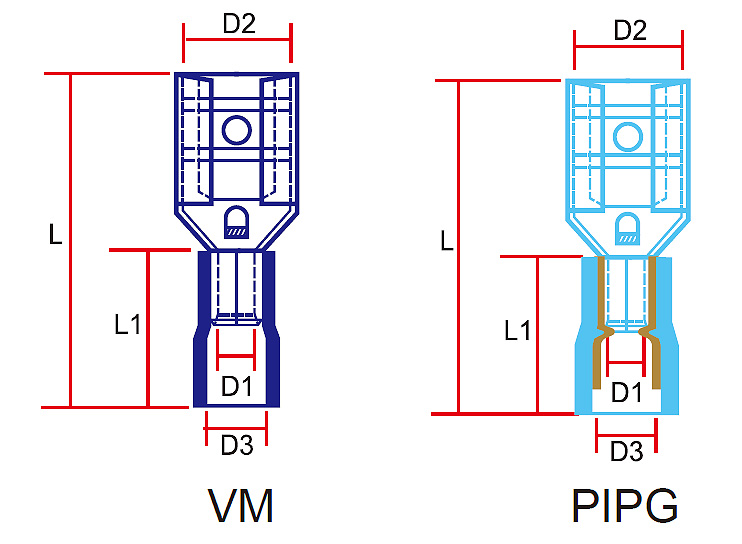

D1 D2 D3 H L L1 AWG(#) D2(mm)

361285 VM/PIPG

Red AWG 22~16
0.5~1.5mm² 		1.8 3.2 4.3 5.5 19.0 10.0 .110x.020 2.8x0.5 100/500/1000

361288 VM/PIPG

Red AWG 22~16
0.5~1.5mm² 		1.8 3.2 4.3 5.5 19.0 10.0 .110x.032 2.8x0.8 100/500/1000

361485 VM/PIPG

Red AWG 22~16
0.5~1.5mm² 		1.8 5.0 4.3 5.5 19.0 10.0 .187x.020 4.8x0.5 100/500/1000

361488 VM/PIPG

Red AWG 22~16
0.5~1.5mm² 		1.8 5.0 4.3 5.5 19.0 10.0 .187x.032 4.8x0.8 100/500/1000

361638 VM/PIPG

Red AWG 22~16
0.5~1.5mm² 		1.8 6.6 4.3 5.5 20.5 10.0 .250x.032 6.3x0.8 100/500/1000
