• 631 FNM/PING Series

    631 FNM/PING Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • NYLON : FNM, PING
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select

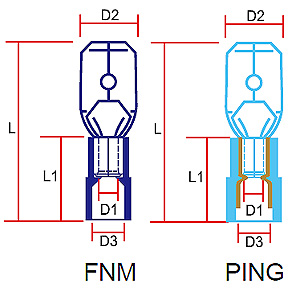

D1 D2 D3 H L L1 AWG(#) D2(mm)

631285 FNM/PING

Red AWG 22~16
0.5~1.5mm² 		1.8 2.8 4.3 5.5 19.6 10.0 .110x.020 2.8x0.5 100/500/1000

631288 FNM/PING

Red AWG 22~16
0.5~1.5mm² 		1.8 2.8 4.3 5.5 20.5 10.0 .110x.032 2.8x0.8 100/500/1000

631485 FNM/PING

Red AWG 22~16
0.5~1.5mm² 		1.8 4.8 4.3 5.5 18.6 10.0 .187x.020 4.8x0.5 100/500/1000

631488 FNM/PING

Red AWG 22~16
0.5~1.5mm² 		1.8 4.8 4.3 5.5 20.0 10.0 .187x.032 4.8x0.8 100/500/1000

631638 FNM/PING

Red AWG 22~16
0.5~1.5mm² 		1.8 6.3 4.3 5.5 21 10.0 .250x.032 6.3x0.8 100/500/1000
