• Butt Splice Connectors-Polycarbonated Insulated ( PC)

    Butt Splice Connectors-Polycarbonated Insulated ( PC)

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • PC : FEMB, PIPG
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) PACKING
POLYBAG 		Select

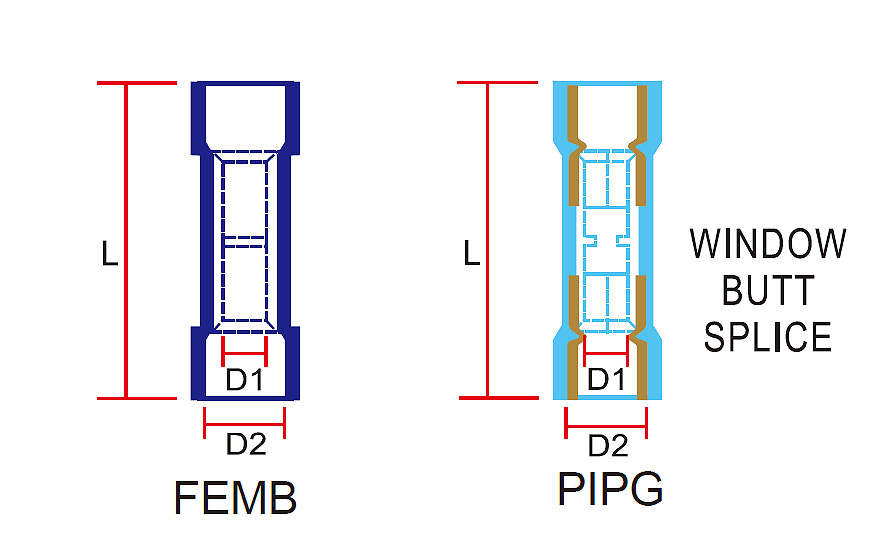

L D1 D2

341032 FEMB/PIPG

Red AWG 22-16
0.5-1.5mm² 		24.5 1.8 4.3 100/500/1000

345040 FEMB/PIPG

Blue AWG 12-10
1.5-2.5mm² 		24.5 2.3 4.8 100/500/1000

343058 FEMB/PIPG

Yellow AWG 22-16
2.5-6mm² 		26 3.5 6.6 100/500/1000
