• Maximum Electic Rating: 105℃ 300V
      最高溫度: 105℃ 耐壓300V
    • Maximum Electric Current: (最大電流)
      22-16AWG / 0.5-1.5mm²: 10A
      16-14AWG / 1.5-2.5mm²: 15A
      12-10AWG / 4-6mm²: 24A
    • Terminal Body: Brass (端子材質: 黃銅)
    • Insulation: Nylon(護套材質: 尼龍)
    • Plating: Tin(表面處理: 鍍錫)
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation Color Wire Range mm2/Awg 适用 Tab Size 插片 Dimension(mm/inch)主要尺寸 Packing 包 Select

351638FNM

Red
0.5-1.5mm2 22-16AWG
.032*.250 (0.8*6.35)

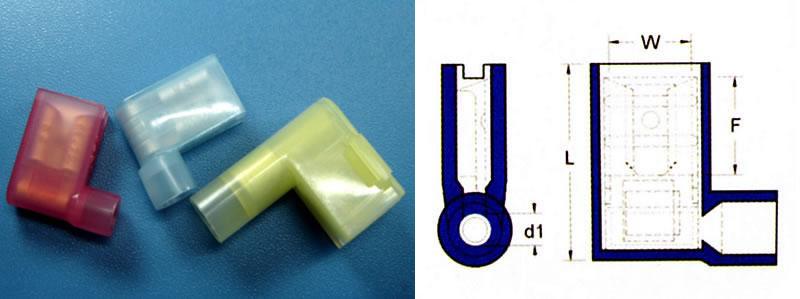

6.6(.260)/7.6(.299)/16.0(.630)/1.7(.067)/0.4(.016)
1000/500

355638FNM

Blue
1.5-2.5mm2 16-14AWG
.032*.250 (0.8*6.35)
6.6(.260)/7.6(.299)/16.0(.630)/2.3(.091)/0.4(.016)
1000/500
