• Butt Splice Connectors Butted Seam Type

    Butt Splice Connectors Butted Seam Type

    1.Maximum Electic Rating: 75℃ 600V
    最高溫度: 75℃ 耐壓600V
    2.Maximum Electric Current: (最大電流)
       22-16AWG / 0.5-1.5mm²: 19A
       16-14AWG / 1.5-2.5mm²: 27A
       12-10AWG / 4-6mm²: 48A
    3.Terminal Body: Copper (端子材質: 紅銅)
    4.Insulation: Vinyl (護套材質: PVC)
    5.Plating: Tin(表面處理: 鍍錫)
Please Click products below, and click Add to Inquiry List for inquiry.

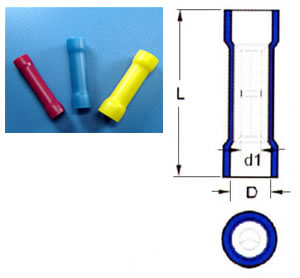

Photo Series Product Name Download Wire Range
mm² / Awg適用電線 		Dimension
(mm / inch)
主要尺寸 		Insulation Color 護套顏色 Q’TY BOX 包裝量 Select
L D d1

341032VM

0.5-1.5mm²
22-16AWG 		24.5(.964) 4.0(.157)  1.7(.067) Red

1000

345040VM

1.5-2.5mm²
16-14AWG

 24.5(.964) 4.5(.177)  2.3(.091)

Blue

1000

343058VM

4-6mm²
12-10AWG

 24.5(.964) 4.5(.177) 2.3(.091) Yellow 1000
