• Butt Connectors-Heat shrinkable Insulated

    Butt Connectors-Heat shrinkable Insulated

    • Maximum Electic Rating: 150℃ 600V
      最高溫度: 150℃ 耐壓600V
    • Maximum Electric Current: (最大電流)
      22-16AWG / 0.5-1.5mm²: 19A
      16-14AWG / 1.5-2.5mm²: 27A
      12-10AWG / 4-6mm²: 48A
    • Terminal Body: Copper (端子材質: 紅銅)
    • Insulation: Heat Shrink Tube (護套材質: 耐高溫熱縮管)
    • Plating: Tin(表面處理: 鍍錫)

      SEL---Heat shrinkable Insulation
Please Click products below, and click Add to Inquiry List for inquiry.

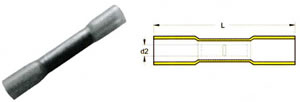

Photo Series Product Name Download Insulation Color
護套顏色 		Wire Range mm2/Awg適用電線 Dimension(mm/inch)
主要尺寸 		Q’TY BOX 包裝量 Select
L d1

341032SEL

Red
0.5-1.5mm²
22-16AWG
 35.0(1.377) 1.7(.067)
1000

345040SEL

Blue
1.5-2.5mm²
16-14AWG
 35.0(1.377) 2.3(.091)
1000

343058SEL

Yellow
4-6mm²
12-10AWG
 42.0(1.653) 3.4(.134)
1000
