• Flanged Spade Terminals-Vinyl Insulated ( PVC 叉形帶鉤端子)

    Flanged Spade Terminals-Vinyl Insulated ( PVC 叉形帶鉤端子)

    • Maximum Electic Rating: 75℃ 600V
      最高溫度: 75℃ 耐壓600V
    • Maximum Electric Current: (最大電流)
      22-16AWG / 0.5-1.5mm²: 19A
      16-14AWG / 1.5-2.5mm²: 27A
      12-10AWG / 4-6mm²: 48A
    • Terminal Body: Copper (端子材質: 紅銅)
    • Insulation: Vinyl (護套材質: PVC)
    • Plating: Tin(表面處理: 鍍錫)
      　
Please Click products below, and click Add to Inquiry List for inquiry.

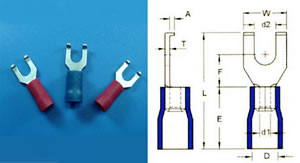

Photo Series Product Name Download Insulation Color Wire Range mm2/Awg 适用 螺栓 Dimension(mm/inch)主要尺寸 Packing 包 Select

811037

Red
0.5-1.5mm2 22-16AWG
#6/3.7(.146)
 7.8(.307)/5.1(.201)/19.0(.748)/10.0(.394)/3.6(.141)/1.7(.067)/0.8(.031)
1000/500

811043

Red
0.5-1.5mm2 22-16AWG
#8/4.3(.169)
 7.8(.307)/5.1(.201)/19.0(.748)/10.0(.394)/3.6(.141)/1.7(.067)/0.8(.031)
1000/500

811053

Red
0.5-1.5mm2 22-16AWG
#10/5.3(.209)
 7.8(.307)/5.1(.201)/19.0(.748)/10.0(.394)/3.6(.141)/1.7(.067)/0.8(.031)
1000/500

815037

Blue
1.5-2.5mm2 16-14AWG
#6/3.7(.146)
 7.8(.307)/5.5(.216)/19.5(.768)/10.0(.394)/4.5(.177)/2.3(.091)/0.8(.031)
1000/500

815043

Blue
1.5-2.5mm2 16-14AWG
#8/4.3(.169)
 7.8(.307)/5.5(.216)/19.5(.768)/10.0(.394)/4.5(.177)/2.3(.091)/0.8(.031)
1000/500

815053

Blue
1.5-2.5mm2 16-14AWG
#10/5.3(.209)
 7.8(.307)/5.5(.216)/19.5(.768)/10.0(.394)/4.5(.177)/2.3(.091)/0.8(.031)
1000/500

813037

Yellow
4-6mm2 12-10AWG
#6/3.7(.146)
 8.5(.335)/7.5(.295)/25.5(1.004)/13.5(.531)/6.3(.248)/3.5(.137)/1.0(.039)
1000/500

813043

Yellow
4-6mm2 12-10AWG
#8/4.3(.169)
 8.5(.335)/7.5(.295)/27.0(1.063)/13.5(.531)/6.3(.248)/3.5(.137)/1.0(.039)
1000/500

813053

Yellow
4-6mm2 12-10AWG
#10/5.3(.209)
 8.5(.335)/7.5(.295)/27.0(1.063)/13.5(.531)/6.3(.248)/3.5(.137)/1.0(.039)
1000/500
