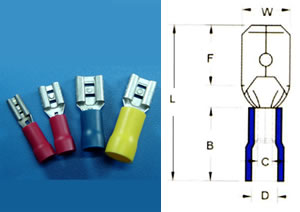

Products Female Quick Disconnects(old) Female Disconnects-Vinyl Insulated Female Disconnects-Vinyl Insulated Maximum Electic Rating: 75℃ 300V 最高溫度: 75℃ 耐壓600V Maximum Electric Current: (最大電流) 22-16AWG / 0.5-1.5mm²: 10A 16-14AWG / 1.5-2.5mm²: 15A 12-10AWG / 4-6mm²: 24A Terminal Body: Brass(端子材質:黃銅) Insulation: Vinyl (護套材質: PVC) Plating: Tin(表面處理: 鍍錫) Please Click products below, and click Add to Inquiry List for inquiry. Photo Series Product Name Download Insulation Color Wire Range mm2/Awg 适用 Tab Size 插片 Dimension(mm/inch)主要尺寸 Packing 包 Select 361285 Red 0.5-1.5mm2 22-16AWG .020*.110(0.5*2.8) 3.2(.126)/6.5(.256)/19.0(.728)/10.0(.394)/3.6(.141)/1.7(.066)/0.3(.012) 1000/500 361288 Red 0.5-1.5mm2 22-16AWG .032*.110(0.8*2.8) 3.2(.126)/6.5(.256)/19.0(.728)/10.0(.394)/3.6(.141)/1.7(.066)/0.3(.012) 1000/500 361485 Red 0.5-1.5mm2 22-16AWG .020*.187(0.5*4.75) 5.0(.197)/6.5(.256)/19.0(.728)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016) 1000/500 361488 Red 0.5-1.5mm2 22-16AWG .032*.187(0.8*4.75) 5.0(.197)/6.5(.256)/19.0(.728)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016) 1000/500 361638 Red 0.5-1.5mm2 22-16AWG .032*.250(0.8*6.35) 6.6(.260)/7.3(.287)/20.5(.807)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016) 1000/500 365285 Blue 1.5-2.5mm2 16-14AWG .020*.110(0.5*2.8) 3.2(.126)/6.5(.256)/19.0(.728)/10.0(.394)/4.0(.157)/2.3(.091)/0.3(.012) 1000/500 365288 Blue 1.5-2.5mm2 16-14AWG .032*.110(0.8*2.8) 3.2(.126)/6.5(.256)/19.0(.728)/10.0(.394)/4.0(.157)/2.3(.091)/0.3(.012) 1000/500 365485 Blue 1.5-2.5mm2 16-14AWG .020*.187(0.5*4.75) 5.0(.197)/6.5(.256)/19.0(.728)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016) 1000/500 365488 Blue 1.5-2.5mm2 16-14AWG .032*.187(0.8*4.75) 5.0(.197)/6.5(.256)/19.0(.728)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016) 1000/500 365638 Blue 1.5-2.5mm2 16-14AWG .032*.250(0.8*6.35) 6.6(.260)/7.3(.287)/20.5(.807)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016) 1000/500 365808 Blue 1.5-2.5mm2 16-14AWG .032*.312(0.8*8.0) 8.2(.323)/10.0(.394)/25.5(1.003)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016) 1000/500 363485 Yellow 4-6mm2 12-10AWG .020*.187(0.5*4.75) 5.0(.197)/6.5(.256)/24.6(.968)/13.5(.531)/6.0(.236)/3.5(.137)/0.4(.016) 1000/500 363488 Yellow 4-6mm2 12-10AWG .032*.187(0.8*4.75) 5.0(.197)/6.5(.256)/24.6(.968)/13.5(.531)/6.0(.236)/3.5(.137)/0.4(.016) 1000/500 363638 Yellow 4-6mm2 12-10AWG .032*.250(0.8*6.35) 6.6(.260)/7.3(.287)/24.6(.968)/13.5(.531)/6.0(.236)/3.5(.137)/0.4(.016) 1000/500 363912 Yellow 4-6mm2 12-10AWG .048*.375(1.2*9.5) 8.2(.323)/10.0(.394)/29.5(1.161)/13.5(.531)/6.0(.236)/3.5(.137)/0.4(.016) 1000/500 Add to Inquiry List Review Inquiry List Back
