• Piggy Back Disconnects-Nylon Insulated

    Piggy Back Disconnects-Nylon Insulated

    • Maximum Electic Rating: 105℃ 600V
      最高溫度: 105℃ 耐壓600V
      Maximum Electric Current: (最大電流)
      22-16AWG / 0.5-1.5mm²: 19A
      16-14AWG / 1.5-2.5mm²: 27A
      12-10AWG / 4-6mm²: 48A
    • Terminal Body: Copper (端子材質: 紅銅)
    • Insulation: Nylon66
    • Plating: Tin(表面處理: 鍍錫)

      FNM---Funnel barrel easy entry Nylon insulator
      FNH---Funnel barrel easy entry Nylon insulator with copper sleeve
      　
Please Click products below, and click Add to Inquiry List for inquiry.

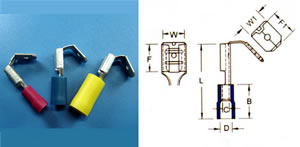

Photo Series Product Name Download Insulation Color Wire Range mm2/Awg 适用 Tab Size 插片 Dimension(mm/inch)主要尺寸 Packing 包 Select

391638

Red
0.5-1.5mm2 22-16AWG
.032*.250(0.8*6.35)
 6.6(.260)/6.35(.250)/7.5(.295)/8.0(.315)/20.0(.787)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016)
1000/500

395638

Blue
1.5-2.5mm2 16-14AWG
.032*.250(0.8*6.35)
 6.6(.260)/6.35(.250)/7.5(.295)/8.0(.315)/20.0(.787)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016)
1000/500

393638

Yellow
4-6mm2 12-10AWG
.032*.250(0.8*6.35)
 6.6(.260)/6.35(.250)/7.5(.295)/8.0(.315)/24.0(.944)/13.0(.512)/5.5(.217)/3.5(.137)/0.4(.016)
1000/500
