• Receptacle Disconnects-PVC Insulated

    Receptacle Disconnects-PVC Insulated

    • Maximum Electic Rating: 105℃ 300V
      最高溫度: 105℃ 耐壓300V
    • Maximum Electric Current: (最大電流)
      22-16AWG / 0.5-1.5mm²: 10A
      16-14AWG / 1.5-2.5mm²: 15A
      12-10AWG / 4-6mm²: 24A
    • Terminal Body: Brass (端子材質: 黃銅)
    • Insulation: Pvc (護套材質: Pvc)
    • Plating: Tin(表面處理: 鍍錫)

      VM---Flared Vinyl without copper sleeve
      PIPG---Pre-insulated funnel Vinyl insulator with easy entry copper sleeve
      　
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation Color
護套顏色 		Wire Range mm²/Awg
適用電線 		Dimension(mm/inch)主要尺寸 Q’TY BOX 包裝量 Select

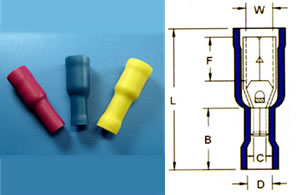

W F L B D C T

731004VM

Red
0.5-1.5mm²
22-16AWG
 3.9(.153) 7.0(.276) 22.5(.885) 10.5(.413) 3.6(.141) 1.7(.066) 0.4(.016)
1000

735004VM

Blue
1.5-2.5mm²
16-14AWG
 3.9(.153) 7.0(.276) 22.5(.885) 10.5(.413) 4.0(.157) 2.3(.091) 0.4(.016)
1000

735005VM

Blue
1.5-2.5mm²
16-14AWG
 4.9(.193) 7.3(.287) 23.0(.905) 10.5(.413) 4.0(.157) 2.3(.091) 0.4(.016)
1000

733005VM

Yellow
4-6mm²
12-10AWG
 4.9(.193) 7.3(.287) 24.0(.945) 13.0(.512) 5.5(.217) 3.5(.137) 0.45(.018)
1000
