• Open Barrel

    Open Barrel

Please Click products below, and click Add to Inquiry List for inquiry.

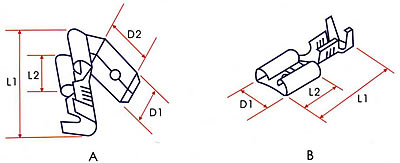

Photo Series Product Name Download Fig. Wire Range Dimension(mm) Tab Size Finish Select
AWG mm² D1 D2 L1 L2 T AWG mm²

309008

A
 22-16 0.5-1.5 6.3 8.1 19.2 7.4 0.8 22~16 0.5~1.5
Brass/Tin

309009

A
 16-14 1.5-2.5 6.3 8.1 19.2 7.4 0.8 16~14 1.5~2.5
Brass/Tin

302638

B
 22-16 0.5-1.5 6.8 - 19.2 7.3 0.8 22~16 0.5~1.5
Brass/Tin

303638

B
 16-14 1.5-2.5 6.9 - 19.3 7.4 0.8 16~14 0.5~1.5
Brass/Tin

303638S

B
 16-14 1.5-2.5 6.9 - 19.3 7.4 0.8 16~14 0.5~1.5
W/Safety Hook
