• Butt Splice Connectors Polycarbonated Type

    Butt Splice Connectors Polycarbonated Type

    • Maximum Electic Rating: 135℃ 300V
      最高溫度: 135℃ 耐壓300V
    • Maximum Electric Current: (最大電流)
      22-16AWG / 0.5-1.5mm²: 19A
      16-14AWG / 1.5-2.5mm²: 27A
      12-10AWG / 4-6mm²: 48A
    • Terminal Body: Copper (端子材質: 紅銅)
    • Insulation: Polycarbonate (護套材質: PC)
    • Plating: Tin(表面處理: 鍍錫)
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation Color Wire Range mm2/Awg 适用 Dimension(mm/inch)主要尺寸 Packing 包 Select

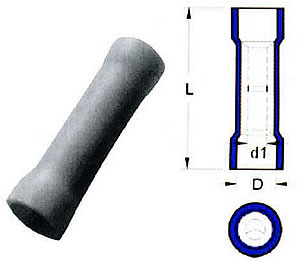

L D d1

341032FEMB

Red
0.5-1.5mm2 22-16AWG
 24.5(.964) 4.0(.157) 1.7(.067)
1000

345040FEMB

Blue
1.5-2.5mm2 16-14AWG
 24.5(.964) 4.5(.177) 2.3(.091)
1000

343058FEMB

Yellow
4-6mm2 12-10AWG
 26.0(1.023) 6.3(.248) 3.4(.134)
1000
