• Bullet-Male Disconntors-Nylon Insulated

    Bullet-Male Disconntors-Nylon Insulated

    • Maximum Electic Rating: 105℃ 600V
      最高溫度: 105℃ 耐壓600V
    • Maximum Electric Current: (最大電流)
      22-16AWG / 0.5-1.5mm²: 19A
      16-14AWG / 1.5-2.5mm²: 27A
      12-10AWG / 4-6mm²: 48A
    • Terminal Body: Copper (端子材質: 紅銅)
    • Insulation: Nylon66
    • Plating: Tin(表面處理: 鍍錫)

      FNM---Funnel barrel easy entry Nylon insulator
      FNH---Funnel barrel easy entry Nylon insulator with copper sleeve
      　

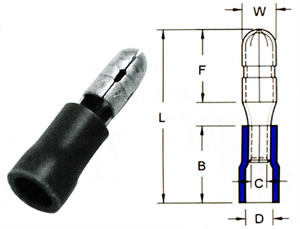

  • Bullet-Male Disconntors-Nylon Insulated

    371nylon

Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation Color Wire Range mm2/Awg 适用 Dimension(mm/inch)主要尺寸 Packing 包 Select

371004

Red
0.5-1.5mm2 22-16AWG
 4.0(.157)/8.5(.335)/20.5(.807)/10.0(.394)/3.6(.141)/1.7(.066)/0.4(.016)
1000/500

375004

Blue
1.5-2.5mm2 16-14AWG
 4.0(.157)/8.5(.335)/20.5(.807)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016)
1000/500

375005

Blue
1.5-2.5mm2 16-14AWG
 5.0(.197)/9.0(.354)/21.0(.826)/10.0(.394)/4.0(.157)/2.3(.091)/0.4(.016)
1000/500

373005

Yellow
4-6mm2 12-10AWG
 5.0(.197)/9.0(.354)/25.0(.984)/13.0(.512)/5.5(.217)/3.5(.137)/0.4(.016)
1000/500
