• 631 FEM/PGTS Series

    631 FEM/PGTS Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • PC : FEM, PGTS
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select

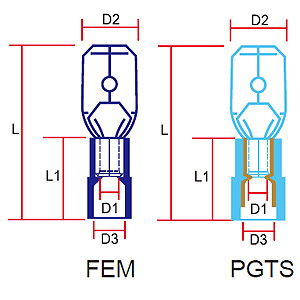

D1 D2 D3 H L L1 AWG(#) D2(mm)

631285 FEM/PGTS

Red AWG 22~16
0.5~1.5mm² 		1.8 2.8 4.3 5.5 19.6 10.0 .110x.020 2.8x0.5 100/500/1000

631288 FEM/PGTS

Red AWG 22~16
0.5~1.5mm² 		1.8 2.8 4.3 5.5 20.5 10.0 .110x.032 2.8x0.8 100/500/1000

631485 FEM/PGTS

Red AWG 22~16
0.5~1.5mm² 		1.8 4.8 4.3 5.5 18.6 10.0 .187x.020 4.8x0.5 100/500/1000

631488 FEM/PGTS

Red AWG 22~16
0.5~1.5mm² 		1.8 4.8 4.3 5.5 20.0 10.0 .187x.032 4.8x0.8 100/500/1000

631638 FEM/PGTS

Red AWG 22~16
0.5~1.5mm² 		1.8 6.3 4.3 5.5 21 10.0 .250x.032 6.3x0.8 100/500/1000
