• 631 Series

    631 Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
    • POLYCARBONATE INSULATOR

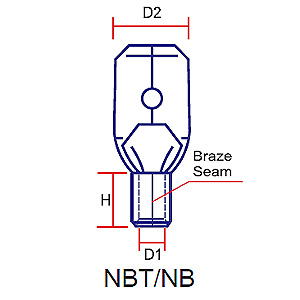

    • NB : NON-INSULATED BRAZED SEAM
    • NBT : NON-INSULATED BUTTED SEAM
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select
D1 D2 D3 H L L1 AWG(#) D2(mm)

631285

AWG 22-16
0.5-1.5mm² 		1.8 2.8 4.3 5.5 19.6 10.0 .110x.020 2.8x0.5 100/500/1000

631288

AWG 22-16
0.5-1.5mm² 		1.8 2.8 4.3 5.5 20.5 10.0 .110x.032 2.8x0.8 100/500/1000

631485

AWG 22-16
0.5-1.5mm² 		1.8 4.8 4.3 5.5 18.6 10.0 .187x.020 4.8x0.5 100/500/1000

631488

AWG 22-16
0.5-1.5mm² 		1.8 4.8 4.3 5.5 20.0 10.0 .187x.032 4.8x0.8 100/500/1000

631638

AWG 22-16
0.5-1.5mm² 		1.8 6.3 4.3 5.5 21 10.0 .250x.032 6.3x0.8 100/500/1000
