• 385 FNM/PING Series

    385 FNM/PING Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • NYLON : FNM, PING
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select

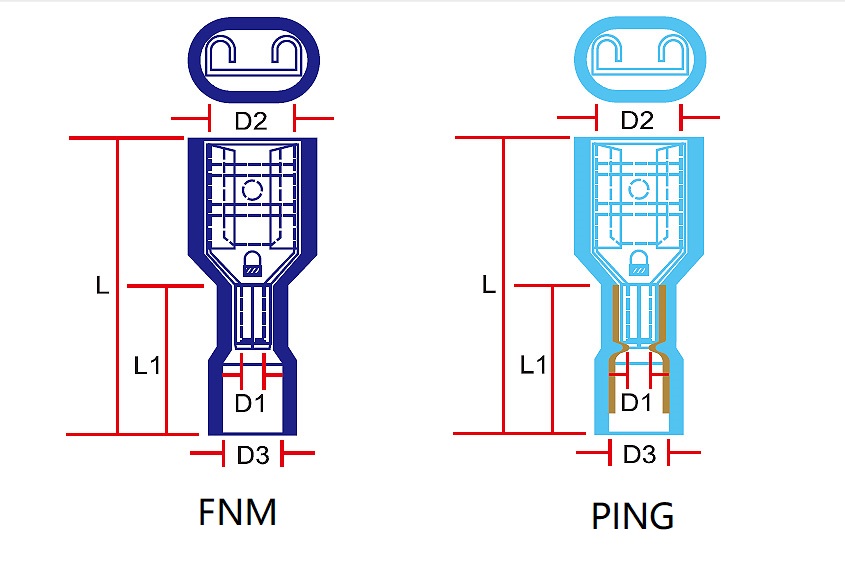

D1 D2 D3 H L L1 AWG(#) D2(mm)

385485 FNM/PING

Blue AWG 16~14
1.5~2.5mm² 		2.3 5 4.8 5.5 20.0 10.0 .187x.020 4.8x0.5 100/500/1000

385488 FNM/PING

Blue AWG 16~14
1.5~2.5mm² 		2.3 5 4.8 5.5 20.0 10.0 .187x.032 4.8x0.8 100/500/1000

385638 FNM/PING

Blue AWG 16~14
1.5~2.5mm² 		2.0 6.6 4.8 5.5 21.5 10.5 .250x.032 6.3x0.8 100/500/1000
