• 383 FEM/PGTS Series

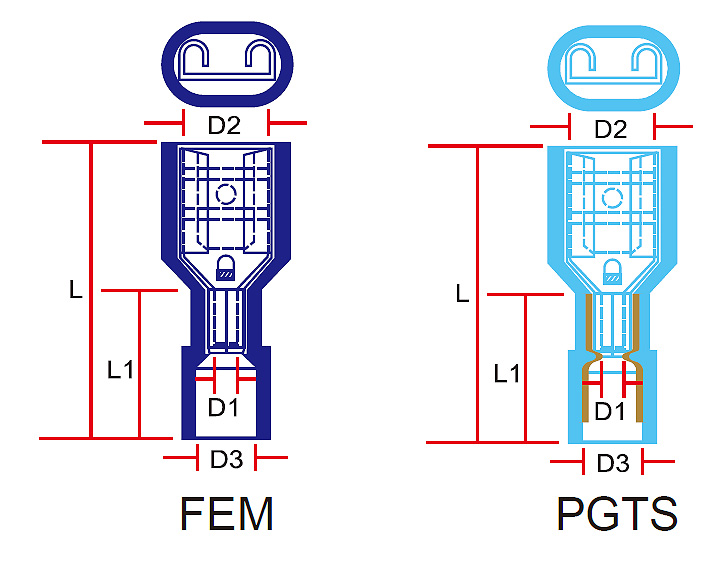

    383 FEM/PGTS Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • PC : FEM, PGTS
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select
D1 D2 D3 H L L1 AWG(#) D2(mm)

383638 FEM/PGTS

Yellow AWG 12~10
2.5~6mm² 		3.5 6.6 6.0 6.5 23.5 13.7 .250x.032 6.3x0.8 100/500/1000

383912 FEM/PGTS

Yellow AWG 12~10
2.5~6mm² 		3.5 10.0 6.0 6.5 30 13.7 .375x.047 9.5x1.2 100/500/1000
