• 383 VM/PIPG Series

    383 VM/PIPG Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • VINYL : VM, PIPG
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select

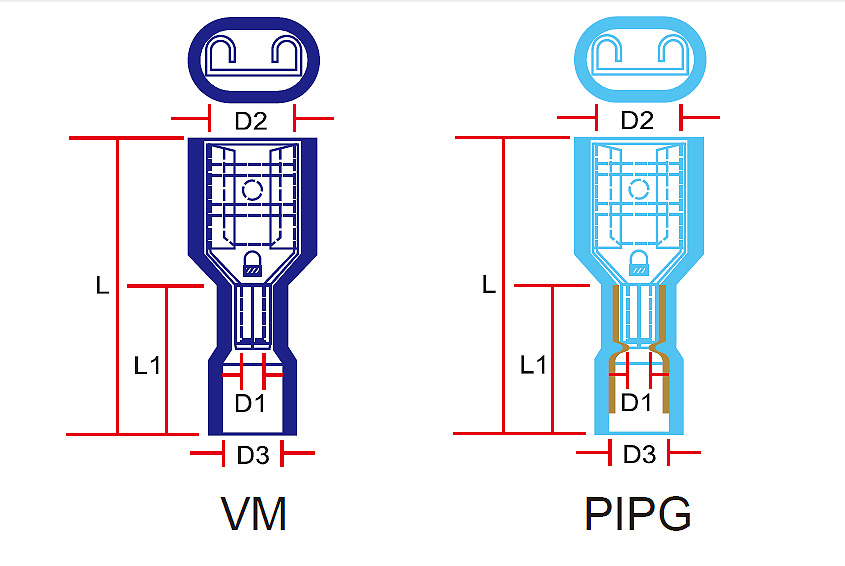

D1 D2 D3 H L L1 AWG(#) D2(mm)

383638 VM/PIPG

AWG12~10
2.5~6mm² 		3.5 6.6 6.0 6.5 23.5 13.7 .250x.032 6.3x0.8 100/500/1000

383912 VM/PIPG

AWG12~10
2.5~6mm² 		3.5 10.0 6.0 6.5 30 13.7 .375x.047 9.5x1.2 100/500/1000
