• 375 FNM/PING Series

    375 FNM/PING Series

    • TERMINAL MATERIAL : BRASS
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • NYLON : FNM, PING
Please Click products below, and click Add to Inquiry List for inquiry.

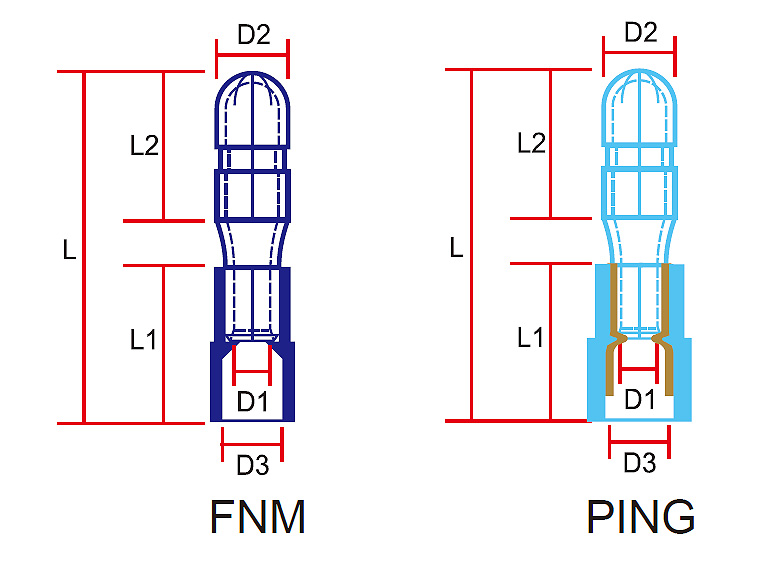

Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select
D1 D2 D3 H L L1 L2 AWG(#) D2(mm)

375004 FNM/PING

Blue AWG16~14
1.5~2.5mm² 		2.3 4.0 4.8 5.5 20.5 10.0 8.5 0.157 4.0 100/500/1000

375005 FNM/PING

Blue AWG16~14
1.5~2.5mm² 		2.3 5.0 4.8 5.5 21.5 10.0 8.5 0.196 5.0 100/500/1000
