• 373 VM/PIPG Series

    373 VM/PIPG Series

    • TERMINAL MATERIAL : BRASS
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • VINYL : VM, PIPG
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select

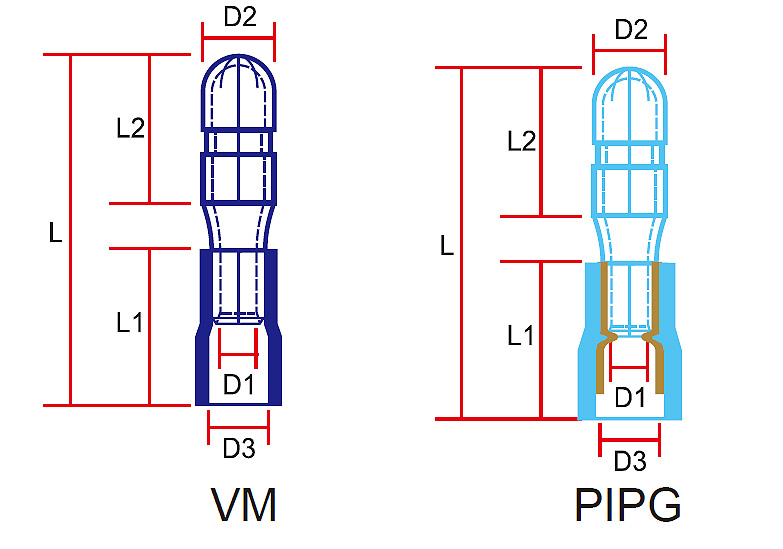

D1 D2 D3 H L L1 L2 AWG(#) D2(mm)

373005 VM/PIPG

Yellow AWG12~10
2.5~6mm² 		3.5 5.0 6.6 6.5 25.0 13.5 8.5 0.196 5.0 100/500/1000
