• 363 FEM/PGTS Series

    363 FEM/PGTS Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • PC : FEM, PGTS
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select

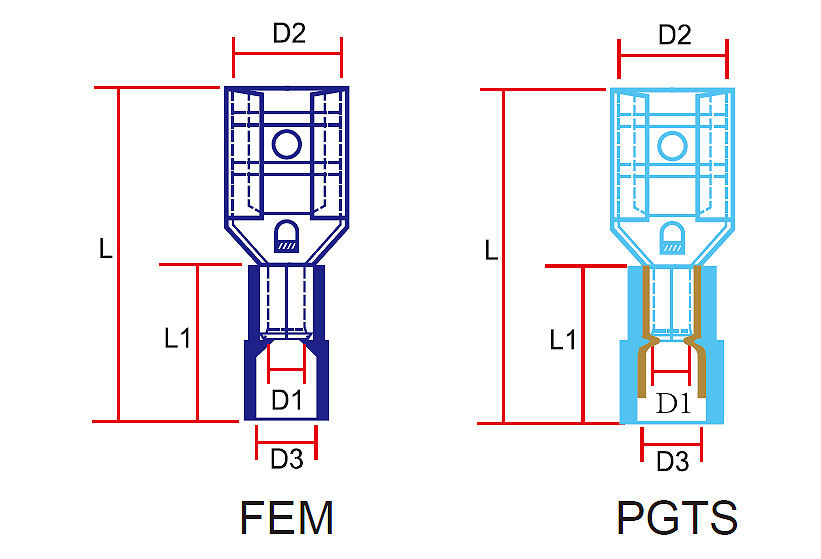

D1 D2 D3 H L L1 AWG(#) D2(mm)

363485 FEM/PGTS

Yellow AWG 12~10
2.5~6mm² 		3.5 5.0 6.6 5.5 24.6 13.5 .187x.020 4.8x0.5 100/500/1000

363488 FEM/PGTS

Yellow AWG 12~10
2.5~6mm² 		3.5 5.0 6.6 5.5 24.6 13.5 .187x.032 4.8x0.8 100/500/1000

363638 FEM/PGTS

Yellow AWG 12~10
2.5~6mm² 		3.5 6.6 6.6 5.5 24.6 13.5 .250x.032 6.3x0.8 100/500/1000

363912 FEM/PGTS

Yellow AWG 12~10
2.5~6mm² 		3.5 10.0 6.6 5.5 29.5 13.7 .375x.047 9.5x1.2 100/500/1000
