• 363 Series

    363 Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR

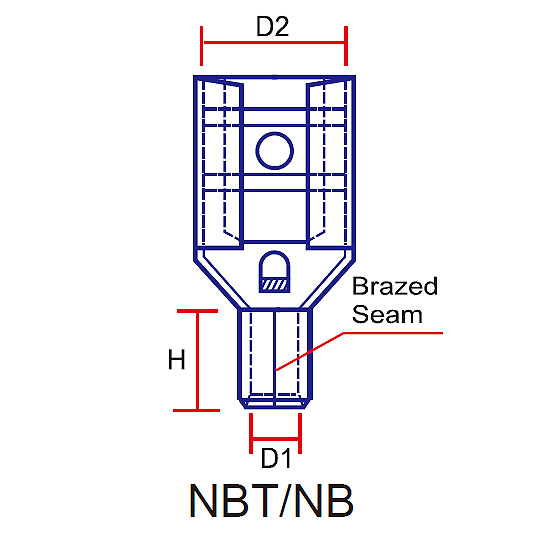

    • NB : NON-INSULATED BRAZED SEAM
    • NBT : NON-INSULATED BUTTED SEAM
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select
D1 D2 D3 H L L1 AWG(#) D2(mm)

363485

AWG 12~10
2.5~6mm² 		3.5 5.0 6.6 5.5 24.6 13.5 .187x.020 4.8x0.5 100/500/1000

363488

AWG 12~10
2.5~6mm² 		3.5 5.0 6.6 5.5 24.6 13.5 .187x.032 4.8x0.8 100/500/1000

363638

AWG 12~10
2.5~6mm² 		3.5 6.6 6.6 5.5 24.6 13.5 .250x.032 6.3x0.8 100/500/1000

363912

AWG 12~10
2.5~6mm² 		3.5 10.0 6.6 5.5 29.5 13.7 .375x.047 9.5x1.2 100/500/1000
