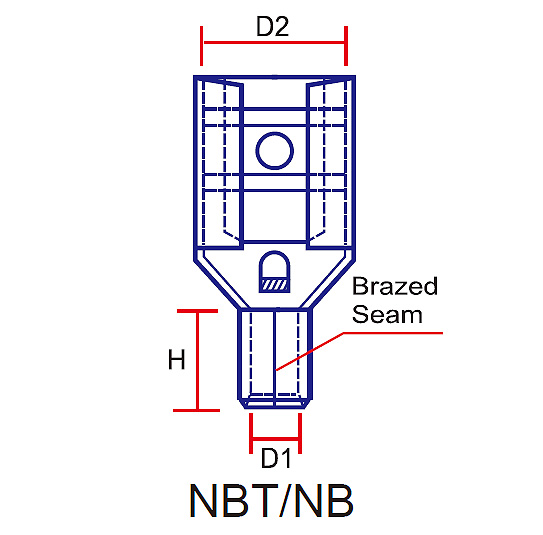

Products Female Disconnectors(NEW) Female Disconnectors-Polycarbonated Insulated 365 Series 365 Series TERMINAL MATERIAL : COPPER RATE ALTERNATIVE INSULATOR: FUNNEL BARREL EASY ENTRY POLYCARBONATE INSULATOR NB : NON-INSULATED BRAZED SEAM NBT : NON-INSULATED BUTTED SEAM Please Click products below, and click Add to Inquiry List for inquiry. Photo Series Product Name Download Wire Range Dimension(mm) TAB SIZE PACKINGPOLYBAG Select D1 D2 D3 H L L1 AWG(#) D2(mm) 365285 AWG 16~141.5~2.5mm² 2.3 3.2 4.8 5.5 19.0 10.0 .110x.020 2.8x0.5 100/500/1000 365288 AWG 16~141.5~2.5mm² 2.3 3.2 4.8 5.5 19.0 10.0 .110x.032 2.8x0.8 100/500/1000 365485 AWG 16~141.5~2.5mm² 2.3 5.0 4.8 5.5 19.0 10.0 .187x.020 4.8x0.5 100/500/1000 365488 AWG 16~141.5~2.5mm² 2.3 5.0 4.8 5.5 19.0 10.0 .187x.032 4.8x0.8 100/500/1000 365638 AWG 16~141.5~2.5mm² 2.3 6.6 4.8 5.5 20.5 10.0 .250x.032 6.3x0.8 100/500/1000 365808 AWG 16~141.5~2.5mm² 2.3 8.2 4.8 5.5 25.5 10.0 .320x.032 8.0x0.8 100/500/1000 Add to Inquiry List Review Inquiry List Back
