• 361 Series

    361 Series

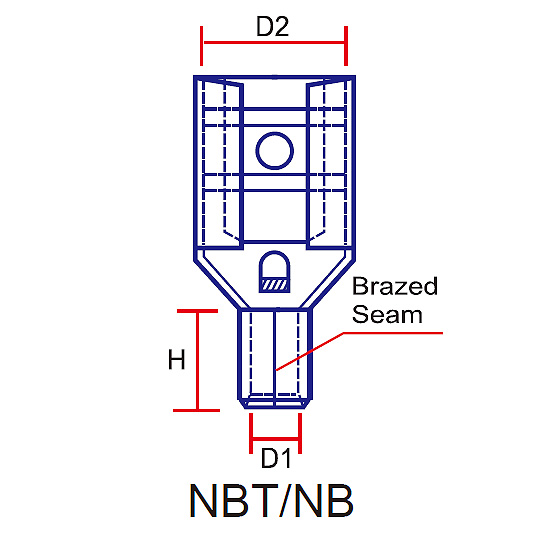

    TERMINAL MATERIAL : COPPER RATE ALTERNATIVE INSULATOR: FUNNEL BARREL EASY ENTRY POLYCARBONATE INSULATOR NB : NON-INSULATED BRAZED SEAM NBT : NON-INSULATED BUTTED SEAM
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select
D1 D2 D3 H L L1 AWG(#) D2(mm)

361285

AWG 22~16
0.5~1.5mm² 		1.8 3.2 4.3 5.5 19.0 10.0 .110x.020 2.8x0.5 100/500/1000

361288

AWG 22~16
0.5~1.5mm² 		1.8 3.2 4.3 5.5 19.0 10.0 .110x.032 2.8x0.8 100/500/1000

361485

AWG 22~16
0.5~1.5mm² 		1.8 5.0 4.3 5.5 19.0 10.0 .187x.020 4.8x0.5 100/500/1000

361488

AWG 22~16
0.5~1.5mm² 		1.8 5.0 4.3 5.5 19.0 10.0 .187x.032 4.8x0.8 100/500/1000

361638

AWG 22~16
0.5~1.5mm² 		1.8 6.6 4.3 5.5 20.5 10.0 .250x.032 6.3x0.8 100/500/1000
