• 331 FEM/PGTS Series

    331 FEM/PGTS Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
    • POLYCARBONATE INSULATOR
    • PC : FEM, PGTS
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) PACKING
POLYBAG 		Select

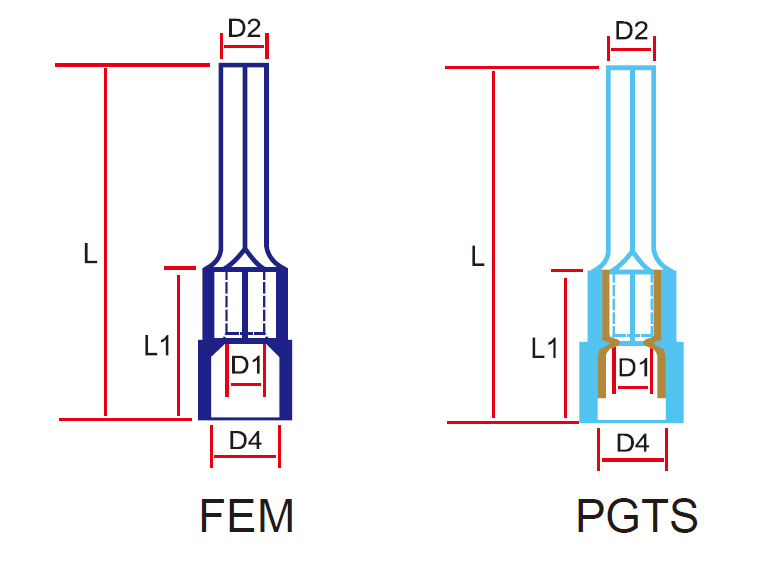

D1 D2 T D4 H1 H2 L L1

331007 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 1.9 0.8 4.3 12.6 5.5 17 10 100/500/1000

331009 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 1.9 0.8 4.3 14.6 5.5 19 10 100/500/1000

331010 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 1.9 0.8 4.3 15.6 5.5 20 10 100/500/1000

331019 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 1.9 0.8 4.3 17.6 5.5 22 10 100/500/1000
