• 335 Series

    335 Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR

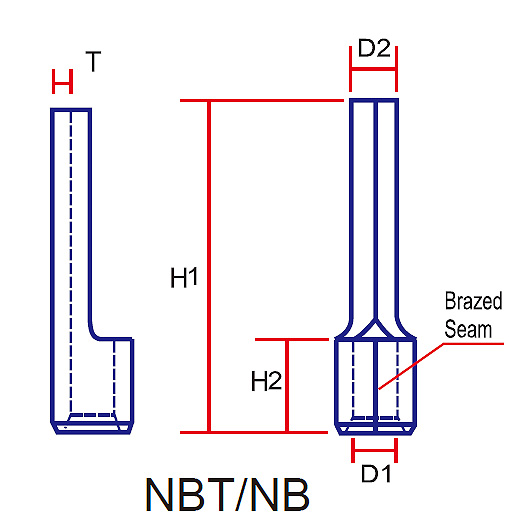

    • NB : NON-INSULATED BRAZED SEAM
    • NBT : NON-INSULATED BUTTED SEAM
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Wire Range Dimension(mm) PACKING
POLYBAG 		Select
D1 D2 T D4 H1 H2 L L1

335007

AWG 16-14
1.5~2.5mm² 		2.3 1.9 0.8 4.7 12.6 5.5 17 10 100/500/1000

335009

AWG 16-14
1.5~2.5mm² 		2.3 1.9 0.8 4.7 14.6 5.5 19 10 100/500/1000

331017

AWG 16-14
1.5~2.5mm² 		2.3 1.9 0.8 4.7 22.7 5.5 27 10 100/500/1000

331019

AWG 16-14
1.5~2.5mm² 		2.3 1.9 0.8 4.7 17.6 5.5 22 10 100/500/1000
