• 331 Series

    331 Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • NB : NON-INSULATED BRAZED SEAM
    • NBT : NON-INSULATED BUTTED SEAM
Please Click products below, and click Add to Inquiry List for inquiry.

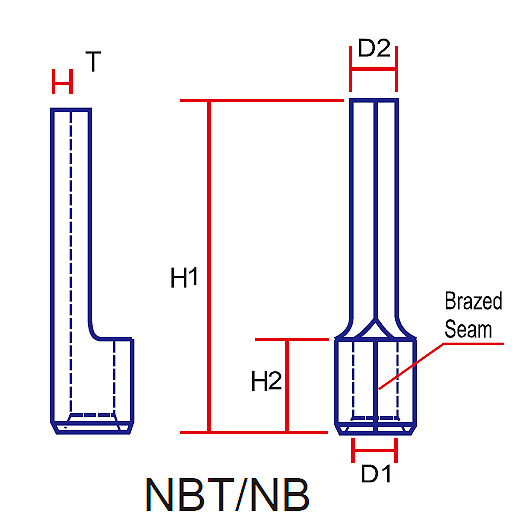

Photo Series Product Name Download Wire Range Dimension(mm) PACKING
POLYBAG 		Select
D1 D2 T D4 H1 H2 L L1

331007

AWG 22-16
0.5~1.5mm² 		1.8 1.9 0.8 4.3 12.6 5.5 17 10 100/500/1000

331009

AWG 22-16
0.5~1.5mm² 		1.8 1.9 0.8 4.3 14.6 5.5 19 10 100/500/1000

331010

AWG 22-16
0.5~1.5mm² 		1.8 1.9 0.8 4.3 15.6 5.5 20 10 100/500/1000

331019

AWG 22-16
0.5~1.5mm² 		1.8 1.9 0.8 4.3 17.6 5.5 22 10 100/500/1000
