• 333 VM/PIPG Series

    333 VM/PIPG Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • VINYL : VM, PIPG
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) PACKING
POLYBAG 		Select

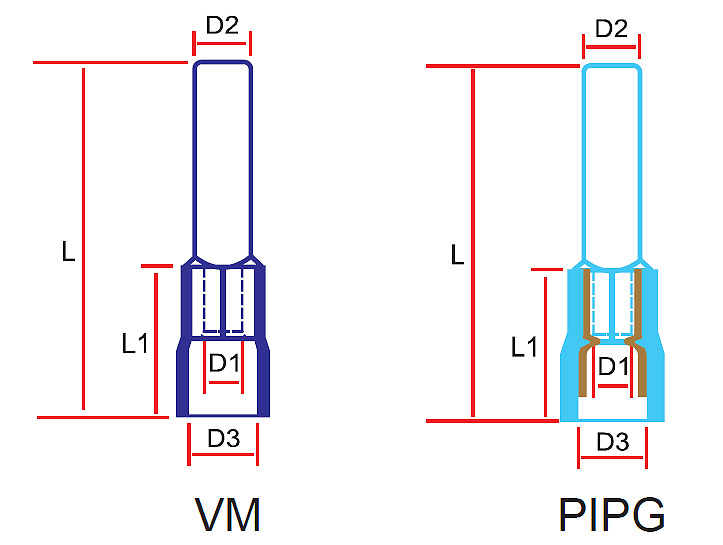

D1 D2 D3 L1 L H2 H1

333410 VM/PIPG

Yellow AWG 12~10
2.5~6mm² 		3.5 3.0 6.5 13.5 23.5 6.5 16.7 100/500/1000

333416 VM/PIPG

Yellow AWG 12~10
2.5~6mm² 		3.5 4.8 6.5 13.5 29.5 6.5 22.5 100/500/1000

333218 VM/PIPG

Yellow AWG 12~10
2.5~6mm² 		3.5 2.1 6.5 13.5 31.5 6.5 24.5 100/500/1000
