• 335 VM/PIPG Series

    335 VM/PIPG Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • VINYL : VM, PIPG
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) PACKING
POLYBAG 		Select

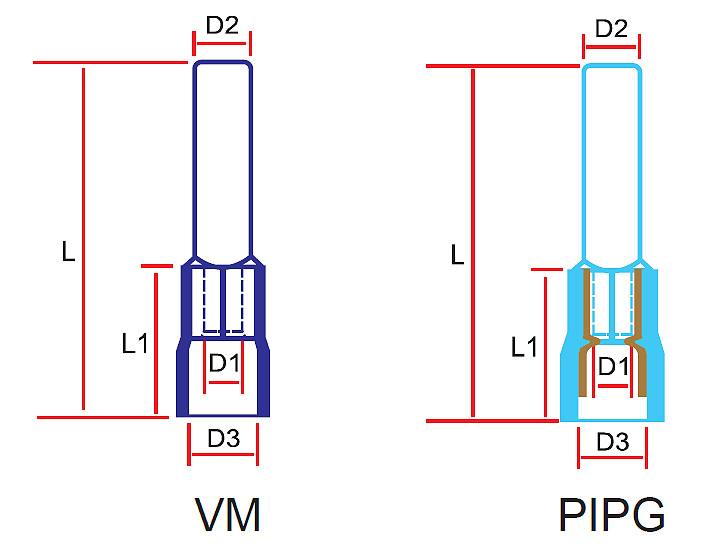

D1 D2 D3 L1 L H2 H1

335310 VM/PIPG

Blue AWG 16~14
1.5~2.5mm² 		2.3 2.5 4.8 10 20.0 5.5 15.5 100/500/1000

335318 VM/PIPG

Blue AWG 16~14
1.5~2.5mm² 		2.3 2.5 4.8 10 28.0 5.5 23.5 100/500/1000
