• 331 Series

    331 Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR

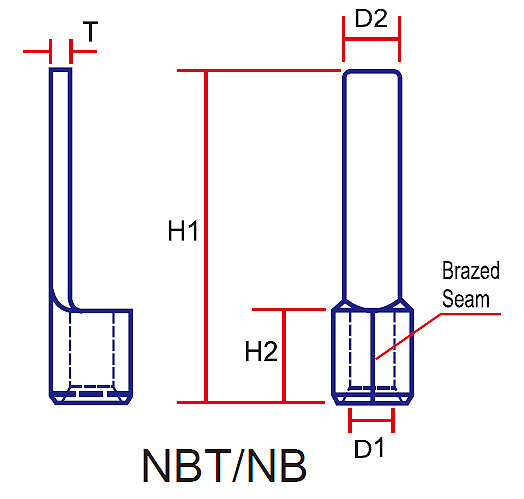

    • NB : NON-INSULATED BRAZED SEAM
    • NBT : NON-INSULATED BUTTED SEAM
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Wire Range Dimension(mm) PACKING
POLYBAG 		Select
D1 D2 D3 L1 L H2 H1

331210

AWG 22~16
0.5~1.5mm² 		1.8 2.3 4.3 10 20.0 5.5 15.5 100/500/1000

331218

AWG 22~16
0.5~1.5mm² 		1.8 2.5 4.3 10 28.0 5.5 23.5 100/500/1000
