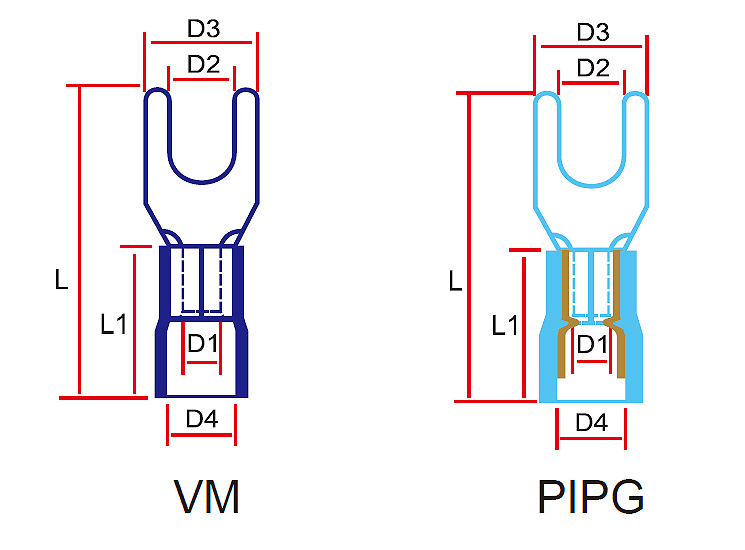

Products Spade Terminals(NEW) Spade Terminals -Vinyl Insulated ( PVC 叉形端子) 325 VM/PIPG Series 325 VM/PIPG Series TERMINAL MATERIAL : COPPER RATE ALTERNATIVE INSULATOR: FUNNEL BARREL EASY ENTRY POLYCARBONATE INSULATOR VINYL : VM, PIPG Please Click products below, and click Add to Inquiry List for inquiry. Photo Series Product Name Download Insulation Color Wire Range Dimension(mm) TAB SIZE PACKINGPOLYBAG Select D1 D3 D4 H1 H2 T AWG(#) D2(mm) 325032 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 6.0 4.6 15.5 5.5 0.8 4 3.2 100/500/1000 325037 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 6.4 4.6 15.5 5.5 0.8 6 3.7 100/500/1000 325043 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 6.4 4.6 15.5 5.5 0.8 8 4.3 100/500/1000 325043L VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 7.2 4.6 15.5 5.5 0.8 8 4.3 100/500/1000 325053 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 8.5 4.6 17.5 5.5 0.8 10 5.3 100/500/1000 325064 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 11.0 4.6 21.5 5.5 0.8 1／4 6.4 100/500/1000 Add to Inquiry List Review Inquiry List Back
