• 321 Series

    321 Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR

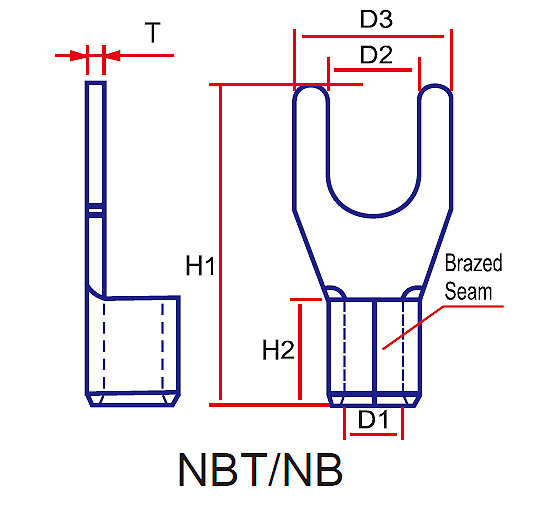

    • NB : NON-INSULATED BRAZED SEAM
    • NBT : NON-INSULATED BUTTED SEAM
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select
D1 D3 D4 H1 H2 T AWG(#) D2(mm)

321032

AWG 22-16
0.5-1.5mm² 		1.8 5.7 4.1 14.5 5.5 0.8 4 3.2 100/500/1000

321037

AWG 22-16
0.5-1.5mm² 		1.8 6.4 4.1 14.5 5.5 0.8 6 3.7 100/500/1000

321043

AWG 22-16
0.5-1.5mm² 		1.8 6.4 4.1 15.5 5.5 0.8 8 4.3 100/500/1000

321043L

AWG 22-16
0.5-1.5mm² 		1.8 7.2 4.1 15.5 5.5 0.8 8 4.3 100/500/1000

321053

AWG 22-16
0.5-1.5mm² 		1.8 8.5 4.1 16.5 5.5 0.8 10 5.3 100/500/1000

321064

AWG 22-16
0.5-1.5mm² 		1.8 11.0 4.1 18.5 5.5 0.8 1／4 6.4 100/500/1000
