• 311 FEM/PGTS Series

    311 FEM/PGTS Series

    • TERMINAL MATERIAL : COPPER RATE
    • ALTERNATIVE INSULATOR:
      FUNNEL BARREL EASY ENTRY
      POLYCARBONATE INSULATOR
    • NYLON : FNM, PING
Please Click products below, and click Add to Inquiry List for inquiry.
Photo Series Product Name Download Insulation
Color 		Wire Range Dimension(mm) TAB SIZE PACKING
POLYBAG 		Select

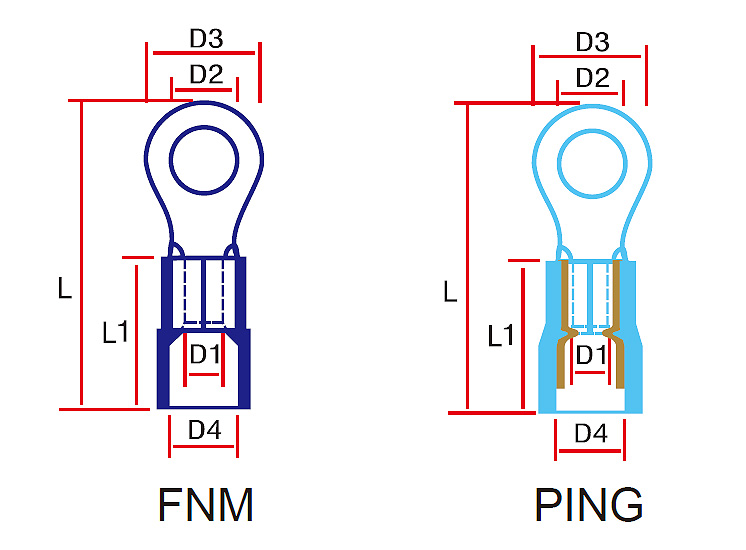

D1 D3 D4 H1 H2 T AWG(#) D2(mm)

311032 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 5.5 4.0 12.2 5.5 0.8 4 3.2 100/500/1000

311037 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 6.5 4.0 15.8 5.5 0.8 6 3.7 100/500/1000

311043 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 8.0 4.0 16.3 5.5 0.8 8 4.3 100/500/1000

311053 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 8.0 4.0 21.2 5.5 0.8 10 5.3 100/500/1000

311064 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 11.0 4.0 21.2 5.5 0.8 1／4 6.4 100/500/1000

311084 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 12.0 4.0 23.8 5.5 0.8 5／16 8.4 100/500/1000

311010 FEM/PGTS

Red AWG 22-16
0.5-1.5mm² 		1.8 14.5 4.0 25.2 5.5 0.8 3／8 10.0 100/500/1000
