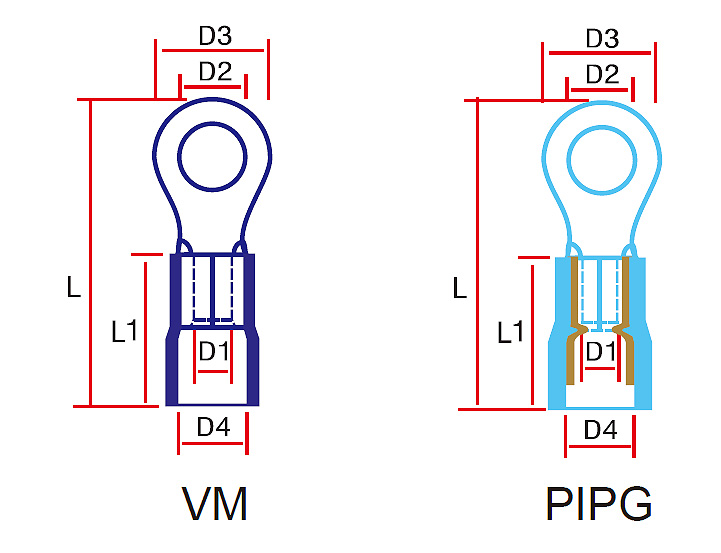

Products Ring Terminals(NEW) Ring Terminals-Vinyl Insulated ( PVC 圓形端子) 313 VM/PIPG Series 313 VM/PIPG Series TERMINAL MATERIAL : COPPER RATE ALTERNATIVE INSULATOR: FUNNEL BARREL EASY ENTRY POLYCARBONATE INSULATOR VINYL : VM, PIPG Please Click products below, and click Add to Inquiry List for inquiry. Photo Series Product Name Download Insulation Color Wire Range Dimension(mm) TAB SIZE PACKINGPOLYBAG Select D1 D3 D4 H1 H2 T AWG(#) D2(mm) 313032 VM/PIPG Yellow AWG 12~102.5~6mm² 3.5 7.2 6.5 20.0 6.5 1.0 4 3.2 100/500/1000 313037 VM/PIPG Yellow AWG 12~102.5~6mm² 3.5 7.2 6.5 20.0 6.5 1.0 6 3.7 100/500/1000 313043S VM/PIPG Yellow AWG 12~102.5~6mm² 3.5 7.2 6.5 20.0 6.5 1.0 8 4.3 100/500/1000 313043 VM/PIPG Yellow AWG 12~102.5~6mm² 3.5 9.5 6.5 20.0 6.5 1.0 8 4.3 100/500/1000 313053 VM/PIPG Yellow AWG 12~102.5~6mm² 3.5 9.5 6.5 20.0 6.5 1.0 10 5.3 100/500/1000 313064 VM/PIPG Yellow AWG 12~102.5~6mm² 3.5 11.0 6.5 22.0 6.5 1.0 1／4 6.4 100/500/1000 313084 VM/PIPG Yellow AWG 12~102.5~6mm² 3.5 14.0 6.5 27.3 6.5 1.0 5／16 8.4 100/500/1000 313010 VM/PIPG Yellow AWG 12~102.5~6mm² 3.5 15.0 6.5 28.0 6.5 1.0 3／8 10.0 100/500/1000 313010L VM/PIPG Yellow AWG 12~102.5~6mm² 3.5 19.0 6.5 32.0 6.5 1.0 3／8 10.0 100/500/1000 313013 VM/PIPG Yellow AWG 12~102.5~6mm² 3.5 19.0 6.5 32.0 6.5 1.0 1／2 13.0 100/500/1000 Add to Inquiry List Review Inquiry List Back
