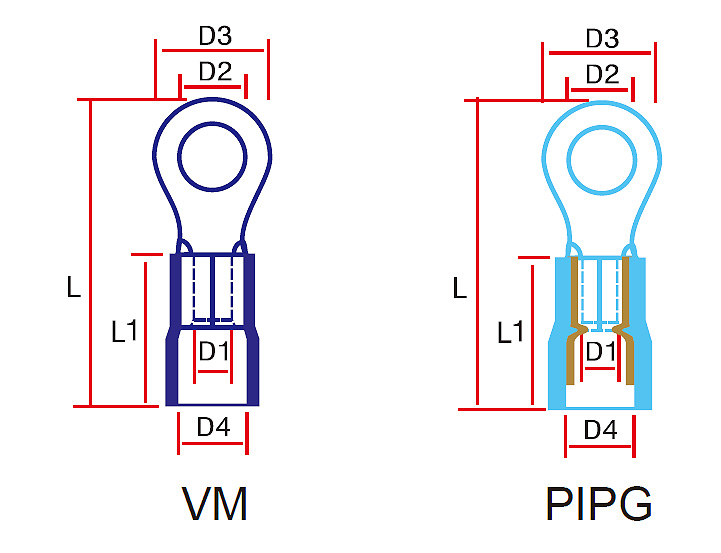

Products Ring Terminals(NEW) Ring Terminals-Vinyl Insulated ( PVC 圓形端子) 315 VM/PIPG Series 315 VM/PIPG Series TERMINAL MATERIAL : COPPER RATE ALTERNATIVE INSULATOR: FUNNEL BARREL EASY ENTRY POLYCARBONATE INSULATOR VINYL : VM, PIPG Please Click products below, and click Add to Inquiry List for inquiry. Photo Series Product Name Download Insulation Color Wire Range Dimension(mm) TAB SIZE PACKINGPOLYBAG Select D1 D3 D4 H1 H2 T AWG(#) D2(mm) 315032 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 5.5 4.6 13.8 5.5 0.8 4 3.2 100/500/1000 315037 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 6.6 4.6 14.3 5.5 0.8 6 3.7 100/500/1000 315043S VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 6.6 4.6 15.5 5.5 0.8 8 4.3 100/500/1000 315043 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 8.0 4.6 16.2 5.5 0.8 8 4.3 100/500/1000 315053S VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 8.0 4.6 17.2 5.5 0.8 10 5.3 100/500/1000 315053 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 8.0 4.6 21.2 5.5 0.8 10 5.3 100/500/1000 315064 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 11.0 4.6 21.2 5.5 0.8 1／4 6.4 100/500/1000 315084 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 12.0 4.6 23.2 5.5 0.8 5／16 8.4 100/500/1000 315010 VM/PIPG Blue AWG 16~141.5~2.5mm² 2.3 14.5 4.6 27.7 5.5 0.8 3／8 10.0 100/500/1000 Add to Inquiry List Review Inquiry List Back
