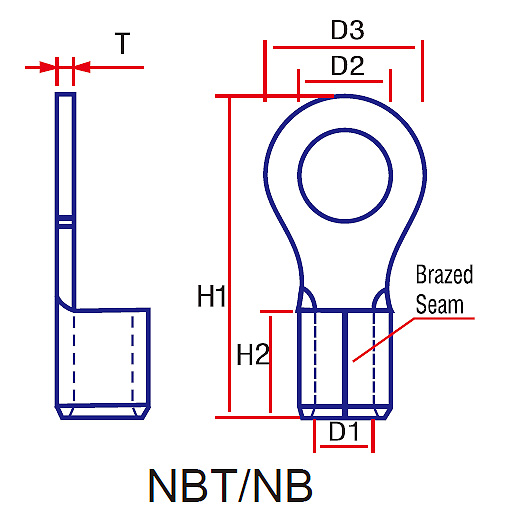

Products Ring Terminals(NEW) Ring Terminals-Non Insulated ( 圓形裸端) 315 Series 315 Series TERMINAL MATERIAL : COPPER RATE ALTERNATIVE INSULATOR: FUNNEL BARREL EASY ENTRY POLYCARBONATE INSULATOR NB : NON-INSULATED BRAZED SEAM NBT : NON-INSULATED BUTTED SEAM Please Click products below, and click Add to Inquiry List for inquiry. Photo Series Product Name Download Wire Range Dimension(mm) TAB SIZE PACKINGPOLYBAG Select D1 D3 D4 H1 H2 T AWG(#) D2(mm) 315032 AWG 16~141.5~2.5mm² 2.3 5.5 4.6 13.8 5.5 0.8 4 3.2 100/500/1000 315037 AWG 16~141.5~2.5mm² 2.3 6.6 4.6 14.3 5.5 0.8 6 3.7 100/500/1000 315043S AWG 16~141.5~2.5mm² 2.3 6.6 4.6 15.5 5.5 0.8 8 4.3 100/500/1000 315043 AWG 16~141.5~2.5mm² 2.3 8.0 4.6 16.2 5.5 0.8 8 4.3 100/500/1000 315053S AWG 16~141.5~2.5mm² 2.3 8.0 4.6 17.2 5.5 0.8 10 5.3 100/500/1000 315053 AWG 16~141.5~2.5mm² 2.3 8.0 4.6 21.2 5.5 0.8 10 5.3 100/500/1000 315064 AWG 16~141.5~2.5mm² 2.3 11.0 4.6 21.2 5.5 0.8 1／4 6.4 100/500/1000 315084 AWG 16~141.5~2.5mm² 2.3 12.0 4.6 23.2 5.5 0.8 5／16 8.4 100/500/1000 315010 AWG 16~141.5~2.5mm² 2.3 14.5 4.6 27.7 5.5 0.8 3／8 10.0 100/500/1000 Add to Inquiry List Review Inquiry List Back
