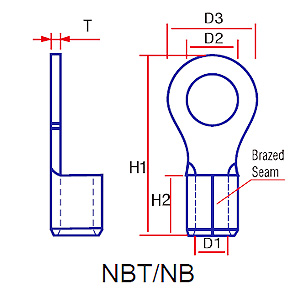

Products Ring Terminals(NEW) Ring Terminals-Non Insulated ( 圓形裸端) 311 Series 311 Series TERMINAL MATERIAL : COPPER RATE ALTERNATIVE INSULATOR: FUNNEL BARREL EASY ENTRY POLYCARBONATE INSULATOR NB : NON-INSULATED BRAZED SEAM NBT : NON-INSULATED BUTTED SEAM Please Click products below, and click Add to Inquiry List for inquiry. Photo Series Product Name Download Wire Range Dimension(mm) TAB SIZE PACKINGPOLYBAG Select D1 D3 D4 H1 H2 T AWG(#) D2(mm) 311032 AWG 22-160.5-1.5mm² 1.8 5.5 4.0 12.2 5.5 0.8 4 3.2 100/500/1000 311037 AWG 22-160.5-1.5mm² 1.8 6.5 4.0 15.8 5.5 0.8 6 3.7 100/500/1000 311043 AWG 22-160.5-1.5mm² 1.8 8.0 4.0 16.3 5.5 0.8 8 4.3 100/500/1000 311053 AWG 22-160.5-1.5mm² 1.8 8.0 4.0 21.2 5.5 0.8 10 5.3 100/500/1000 311064 AWG 22-160.5-1.5mm² 1.8 11.0 4.0 21.2 5.5 0.8 1／4 6.4 100/500/1000 311084 AWG 22-160.5-1.5mm² 1.8 12.0 4.0 23.8 5.5 0.8 5／16 8.4 100/500/1000 311010 AWG 22-160.5-1.5mm² 1.8 14.5 4.0 25.2 5.5 0.8 3／8 10.0 100/500/1000 Add to Inquiry List Review Inquiry List Back
